High Torque 37mm offset shaft spur gearbox with 35mm carbon brush dc motor mini 12v 24v dc gear motor for ATM
Model: 37GB3530/37GB3540
Characters:
Carbon brush dc motor
Encoder available
Shaft can be custom made
High torque spur gearbox
Enhanced 120/1 gearbo
20kg.cm on-load torque
Tytical Application:
ATM
Dispenser
Vending Machine
Industry products
Robot
Product Showcase:

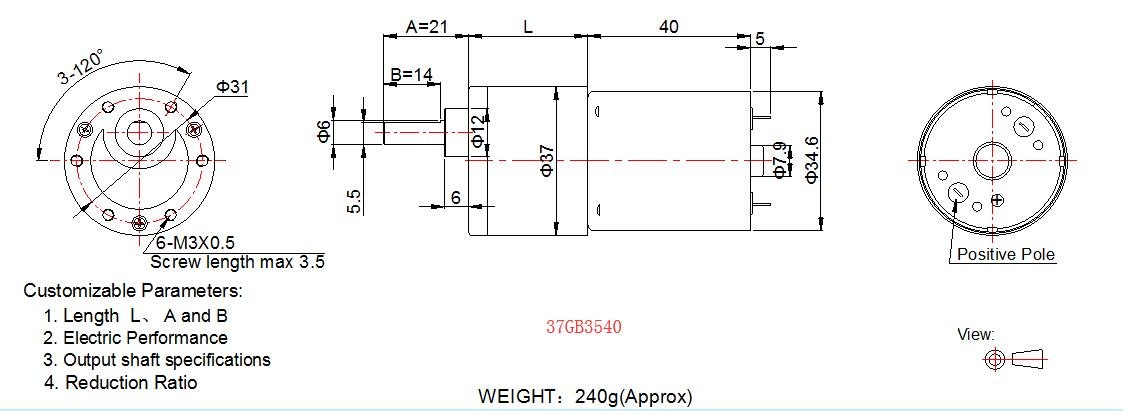

Outline Drawing:
Gearbox Reduction Ratio:
| Gearbox Length (mm) | Stage Number | Reduction Ratio | Rated Torque | Bearable Maximum Instant Torque |
| kg.cm |
| 21.5 | 2 (Enhanced) | 8.9/1 | 10.3/1 | | | | | 5.0 | 10.0 |
| 21.5 | 3 | 18/1 | 26/1 | 31/1 | | | | 5.0 | 10.0 |
| 24 | 4 | 40/1 | 46/1 | 55/1 | 68/1 | 79/1 | 93/1 | 7.0 | 13.0 |
| 26.5 | 5 | 102/1 | 120/1 | 165/1 | 202/1 | 238/1 | 278/1 | 10.0 | 20.0 |
| 29 | 6 | 306/1 | 359/1 | 420/1 | 495/1 | 516/1 | 606/1 | 12.0 | 20.0 |
| 31.5 | 7 | 666/1 | 782/1 | 918/1 | | | | 15.0 | 25.0 |
| 31.5 | 5(Enhanced) | 120/1 | | | | | | 30.0 | 50.0 |
Motor Performance:
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | kg.cm | W | kg.cm | A |
| 37GB3530-8.9-12730 | 8.9/1 | 5.0~13.0 | 12.0 | 730 | 0.09 | 639 | 0.64 | 0.5 | 3.08 | 3.8 | 4.5 |
| 37GB3530-31-12209 | 31/1 | 5.0~13.0 | 12.0 | 209 | 0.09 | 183 | 0.65 | 1.5 | 2.82 | 11.8 | 4.5 |
| 37GB3530-93-1270 | 93/1 | 5.0~13.0 | 12.0 | 70 | 0.1 | 60 | 0.7 | 4.5 | 2.77 | 32.5 | 4.5 |
| 37GB3530-165-1240 | 165/1 | 8.0~15.0 | 12.0 | 40 | 0.1 | 35 | 0.67 | 6.6 | 2.37 | 51.6 | 4.5 |
| 37GB3530-495-1213 | 495/1 | 8.0~15.0 | 12.0 | 13 | 0.11 | 11.3 | 0.7 | 18.0 | 2.09 | 139.0 | 4.5 |
MODEL | REDUCTION RATIO | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL |
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT |
| V | rpm | A | rpm | A | kg.cm | W | kg.cm | A |
| 37GB3540-18-12400 | 18/1 | 5.0~13.0 | 12.0 | 400 | 0.13 | 336 | 0.87 | 1.2 | 4.14 | 7.6 | 4.8 |
| 37GB3540-93-1277 | 93/1 | 5.0~13.0 | 12.0 | 77 | 0.13 | 66 | 0.79 | 5.0 | 3.38 | 35.6 | 4.8 |
| 37GB3540-278-1225 | 278/1 | 5.0~13.0 | 12.0 | 25 | 0.14 | 21 | 0.83 | 14.0 | 3.02 | 95.1 | 4.8 |
| 37GB3540-420-1217 | 420/1 | 5.0~13.0 | 12.0 | 17 | 0.14 | 14.5 | 0.82 | 18.0 | 2.68 | 129.0 | 4.8 |
| 37GB3540-666-1210.5 | 666/1 | 5.0~13.0 | 12.0 | 10.5 | 0.15 | 9.1 | 0.75 | 20.0 | 1.87 | 166.0 | 4.8 |
The Shaft and the motor performance such as voltage and speed can be custom made.
Here attached the PDF spec.
37GB3530.pdf
37GB3540.pdf
